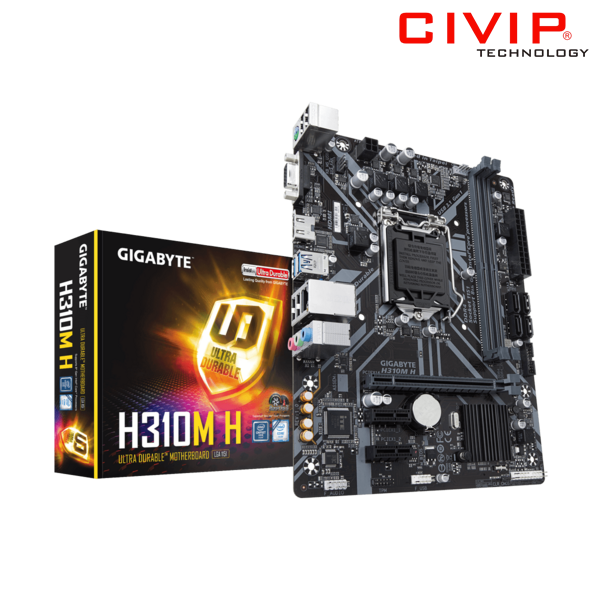

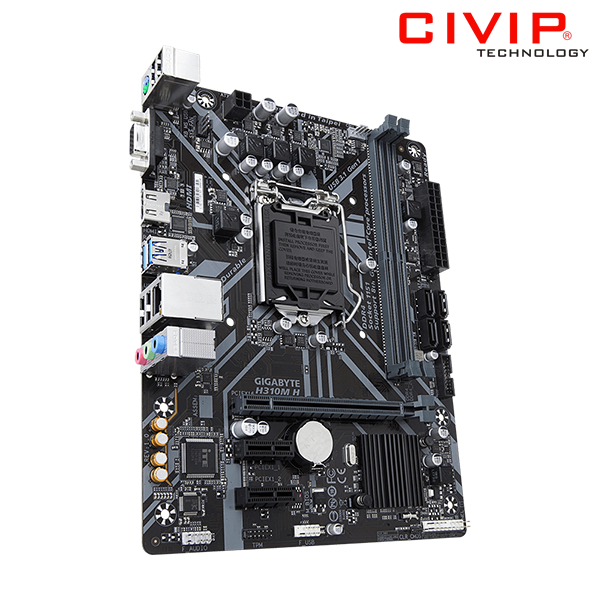

Bo mạch chủ Mainboard GIGABYTE H310M H

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MTs memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

4 x SATA 6Gb/s connectors

USB

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

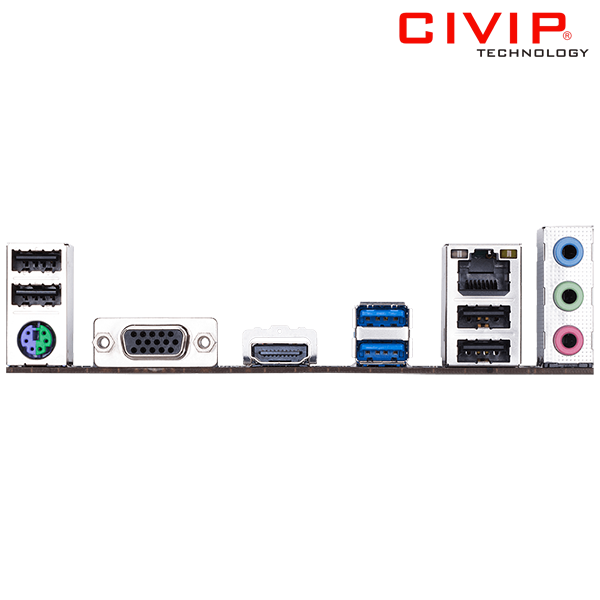

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Support for Windows 11 64-bit

Support for Windows 10 64-bit
