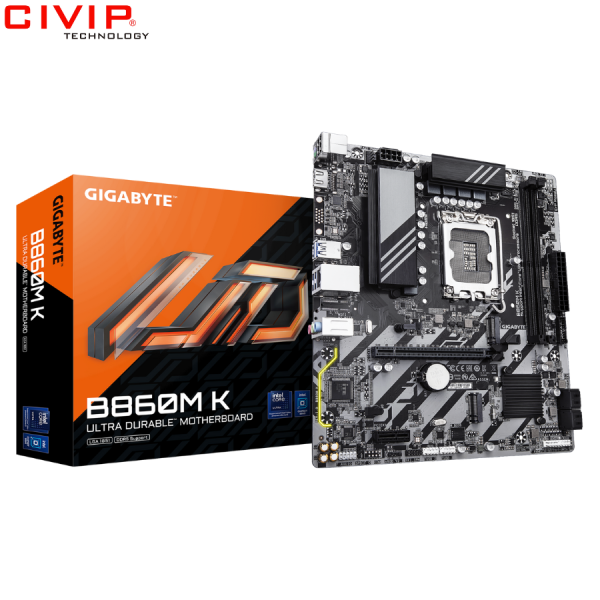

✅ Chipset: Intel B860

✅ Socket: LGA 1851

✅ Kích thước: m-ATX

✅ Số khe RAM: 2x DDR5 (Tối đa 128GB, O.C lên đến 8800 MT/s)

✅ Ổ cứng hỗ trợ: 2x M.2 NVMe (hỗ trợ PCIe 4.0), 4x SATA 6Gb/s

✅ Khe PCIe: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1

✅ Cổng xuất hình: 1x HDMI 2.1

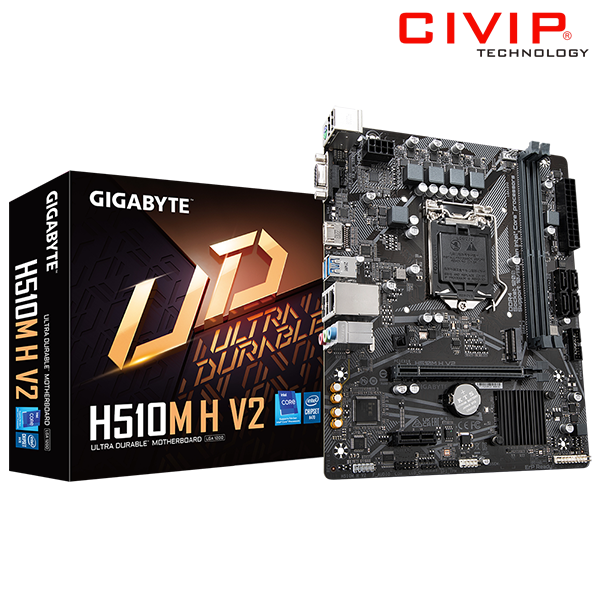

• Model: H510M H V2
• CPU hỗ trợ: Intel
• Chipset: Intel® H470 Express Chipset
• RAM hỗ trợ:
•  11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Khe cắm mở rộng
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Ổ cứng hỗ trợ:
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
• Cổng kết nối (Internal)
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• Back Panel
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• LAN / Wireless
• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Kích cỡ
• Micro ATX Form Factor; 22.6cm x 18.5cm
