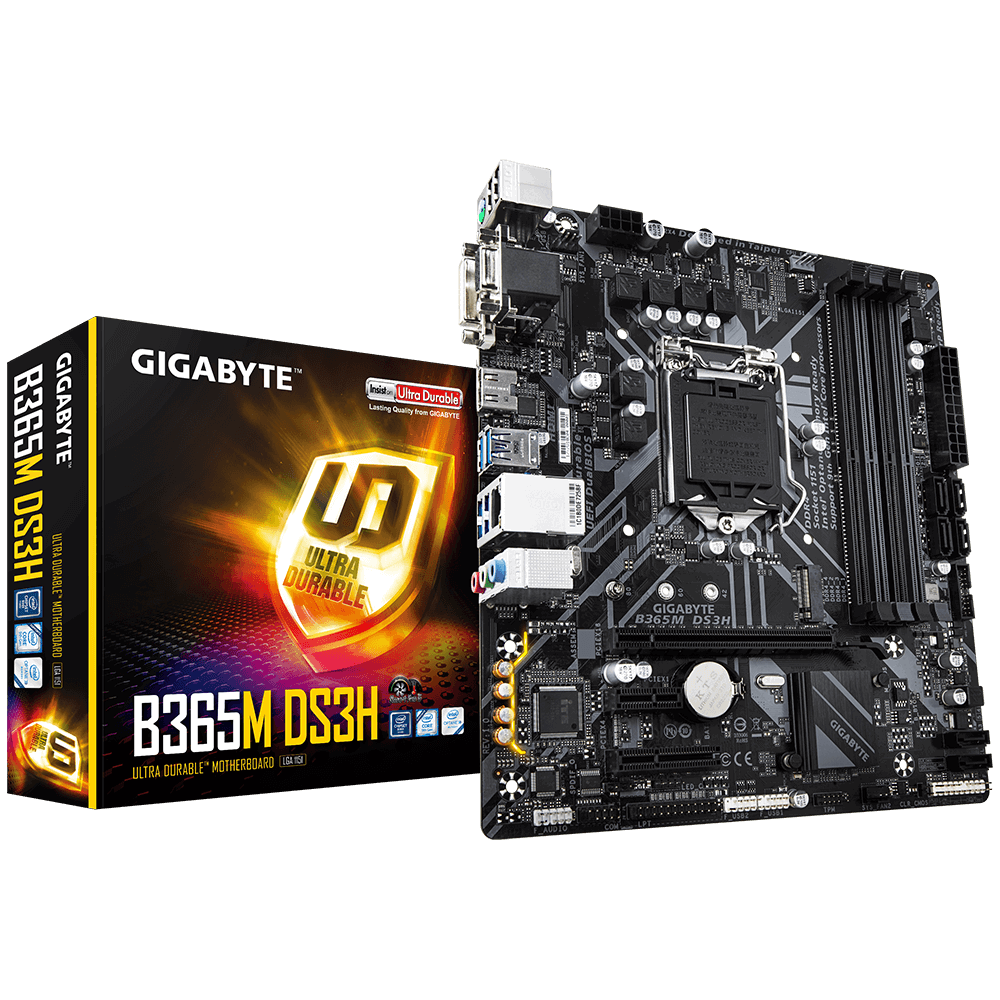

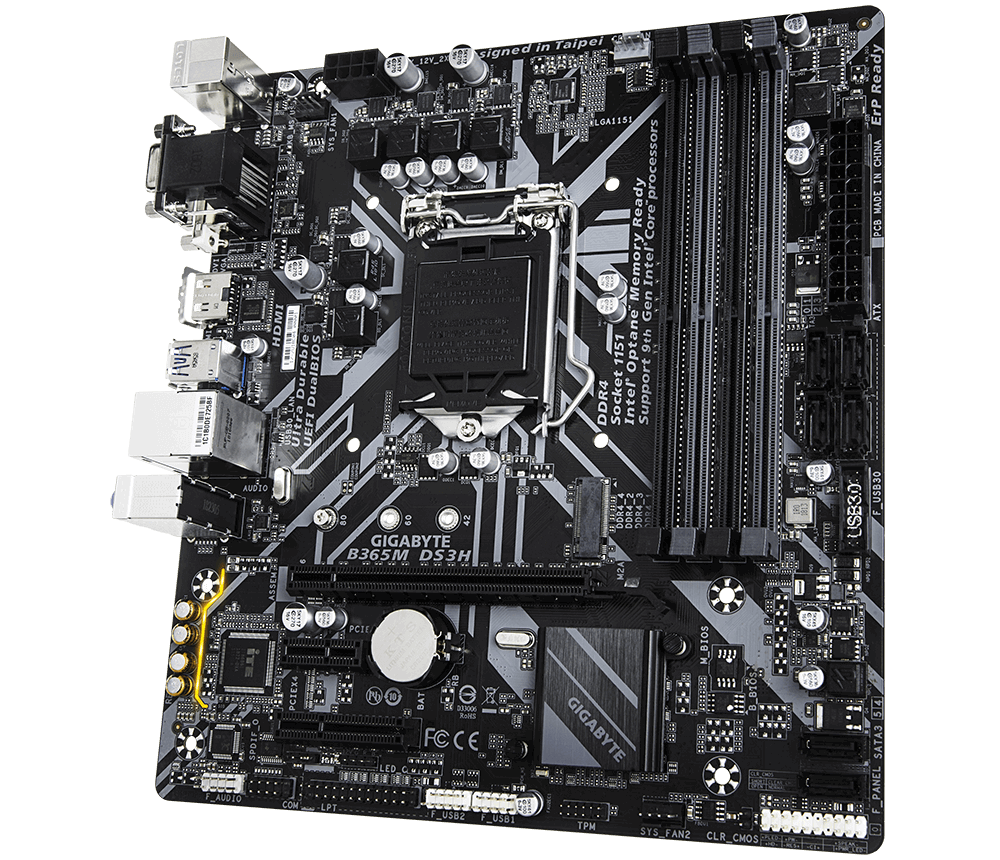

B365M-DS3H là mẫu mainboard 1151-v2 phổ thông mới nhất của GIGABYTE, hỗ trợ các dòng CPU Core i thế hệ 8 và 9 của Intel với đầy đủ các tính năng cơ bản của bộ chipset B365, phù hợp với các cấu hình chơi game tầm trung.
Các bộ phận của GIGABYTE B365M-DS3H đều được gia công cẩn thận với linh kiện cao cấp nhằm đảm bảo đem lại tính ổn định và tuổi thọ hoạt động tốt nhất.
Ngoài ra, khe cắm PCI trên mainboard cũng đươc gia cố để chịu lực tốt hơn, hỗ trợ việc sử dụng card màn hình có khối lượng lớn.
Về lưu trữ, B365M-DS3H được tích hợp 1 khe cắm M.2 NVMe với tốc độ lên tới 32Gb/s, sẵn sàng hỗ trợ các ổ cứng SSD cao cấp. Đồng thời hỗ trợ bộ nhớ Intel Optane giúp tăng tốc độ hoạt động của hệ thống bằng cách tự động di chuyển dữ liệu thường được sử dụng từ ổ cứng thông thường vào bộ nhớ Optane.
Sử dụng bộ giải mã âm thanh ALC887 và mạch xử lý âm thanh được tách biệt hoàn toàn so với phần còn lại của mainboard, giúp đem lại trải nghiệm âm thanh tốt nhất cho nguời dùng.
Trên bề mặt mainboard là các chân cắm 4pin và cảm biến nhiệt, giúp người dùng có thể theo dõi nhiệt độ và điều khiển tốc độ của quạt một cách chính xác nhất.
Các chân cắm 4pin trên GIGABYTE B365M-DS3H có khả năng hỗ trợ toàn bộ các linh kiện tản nhiệt như quạt, bơm, thậm chí là cảm biến dòng chảy trong các bộ tản nhiệt nước, giúp người dùng thoải mái thiết lập hệ thống tản nhiệt cho máy tính của mình.
GIGABYTE B365M-DS3H đi kèm với giao diện BIOS thân thiện, đem lại cho người dùng trải nghiệm tốt nhất đồng thời việc tùy chỉnh cũng trở nên dễ dàng hơn.
Video đang cập nhật...
|
|
Quang Đức
Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.
Bộ vi xử lý |
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
Khe cắm mở rộng |
1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x4 slot 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
Chipset |
Intel® B365 Express Chipset |
Giao tiếp |
Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
Lan |
Realtek® GbE LAN chip (10/100/1000 Mbit) |
Âm thanh |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
Hệ điều hành hỗ trợ |
Support for Windows 10 64-bit |
Cổng I/O phía sau |
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Cổng I/O ở trong |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
Kích thước |
Micro ATX Form Factor; 22.6cm x 20.5cm |
Bảo hành |
36 tháng |
