Chuẩn mainboard: Mini-ITX

Socket: 1151, Chipset: B365

Hỗ trợ RAM: 2 khe DDR4, tối đa 32GB

Lưu trữ: 1 x M.2 NVMe, 4 x SATA 3 6Gb/s

Cổng xuất hình: 1 x HDMI, 1 x DVI, 1 x Display Port

Xem thêm > Thu gọn

Bảo hành:

36 tháng

Giá:

Liên hệ

Đặt mua ngay Miễn phí giao hàng, thanh toán linh hoạt

Trợ giúp

Hướng dẫn mua hàng
Hướng dẫn thanh toán
Chính sách đổi trả hàng
Chính sách mua trả góp
Chính sách bảo hành
Chính sách giao hàng

Customer Is Very Important Person - CIVIP

Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Sản phẩm	Bo mạch chủ
Tên Hãng	ASROCK
Model	B365M-ITX/ac
CPU hỗ trợ	Intel
Chipset	B365
RAM hỗ trợ	2 x DDR4 memory slots, DDR4 2666 / 2400 / 2133 non-ECC
Khe cắm mở rộng	1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Ổ cứng hỗ trợ	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
Cổng kết nối (Internal)	- 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis Fan Connector (4-pin) - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

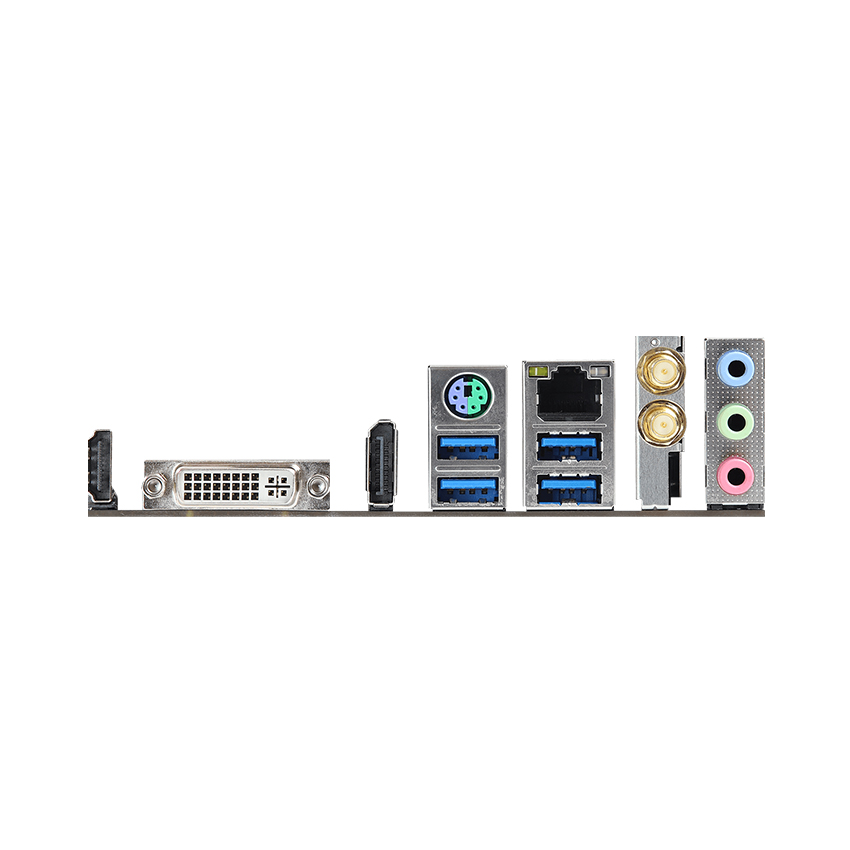

Cổng kết nối (Back Panel)	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x DVI-I Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN	Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
WIFI	- Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II
Kích cỡ	Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

Sản phẩm	Bo mạch chủ
Tên Hãng	ASROCK
Model	B365M-ITX/ac
CPU hỗ trợ	Intel
Chipset	B365
RAM hỗ trợ	2 x DDR4 memory slots, DDR4 2666 / 2400 / 2133 non-ECC
Khe cắm mở rộng	1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Ổ cứng hỗ trợ	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
Cổng kết nối (Internal)	- 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis Fan Connector (4-pin) - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel)	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x DVI-I Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN	Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
WIFI	- Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II
Kích cỡ	Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

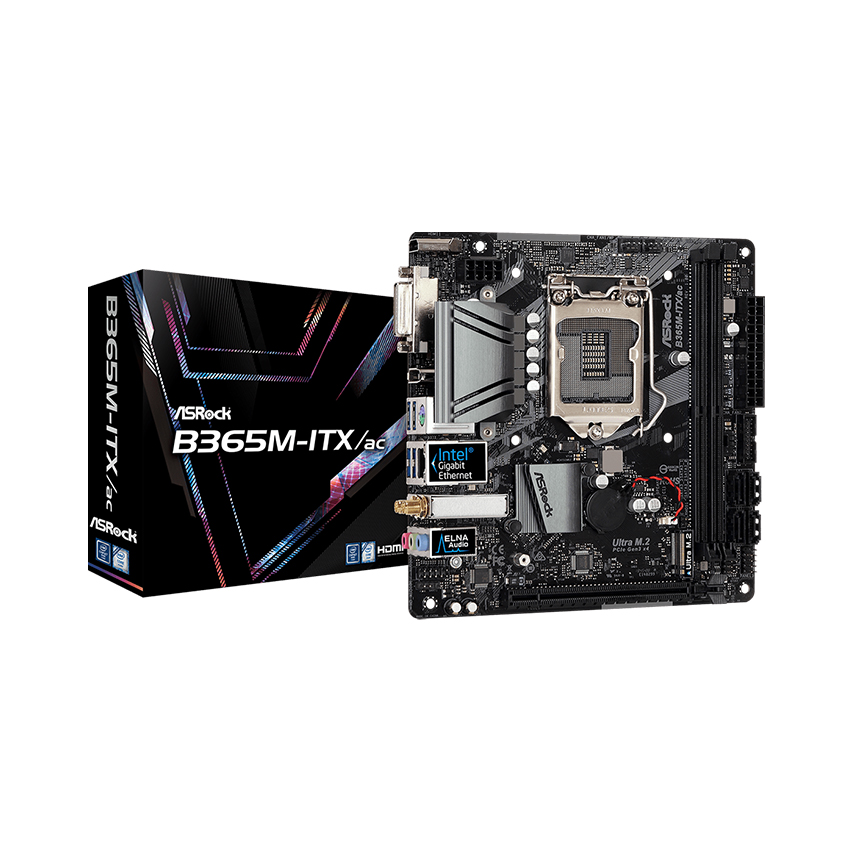

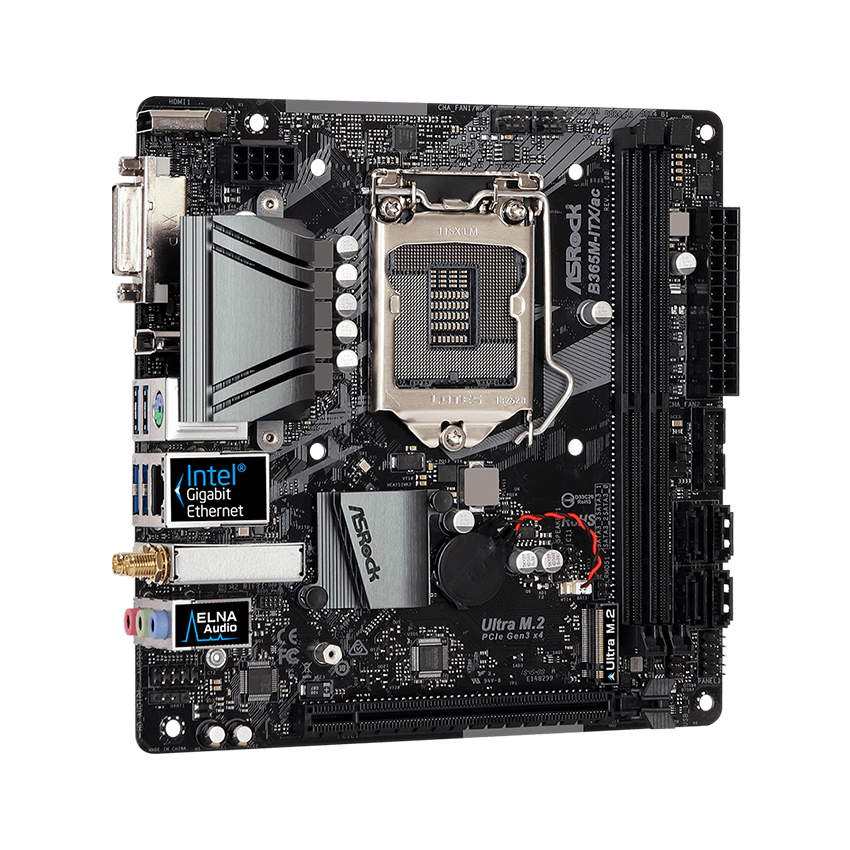

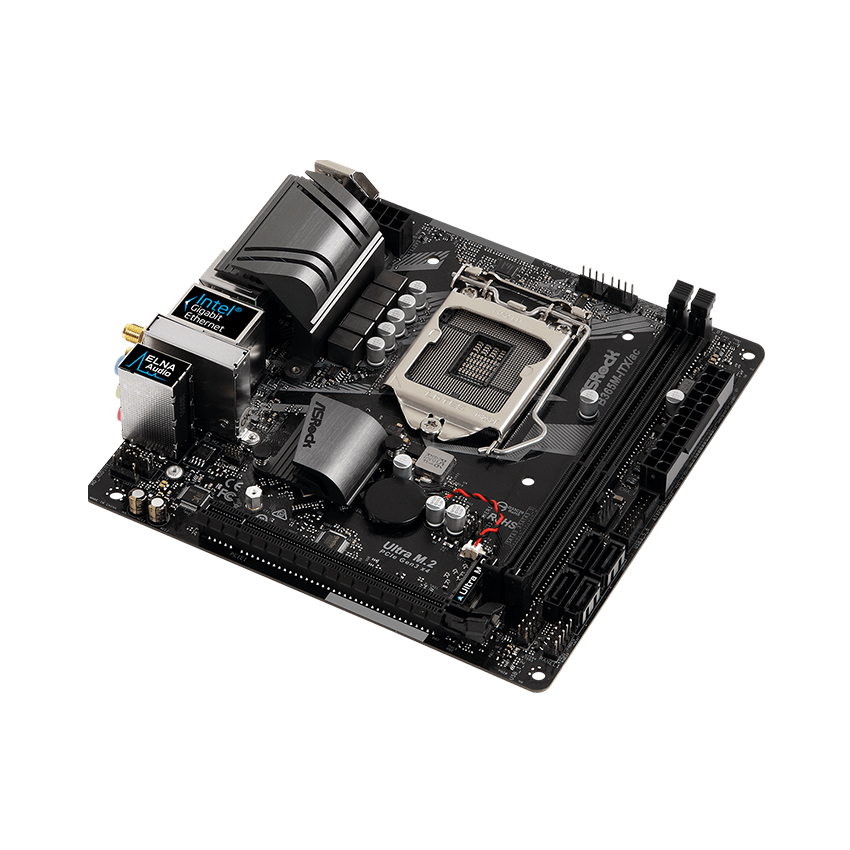

Mainboard ASROCK B365M-ITX/ac (Intel B365/Socket 1151/2 khe Ram DDR4)
