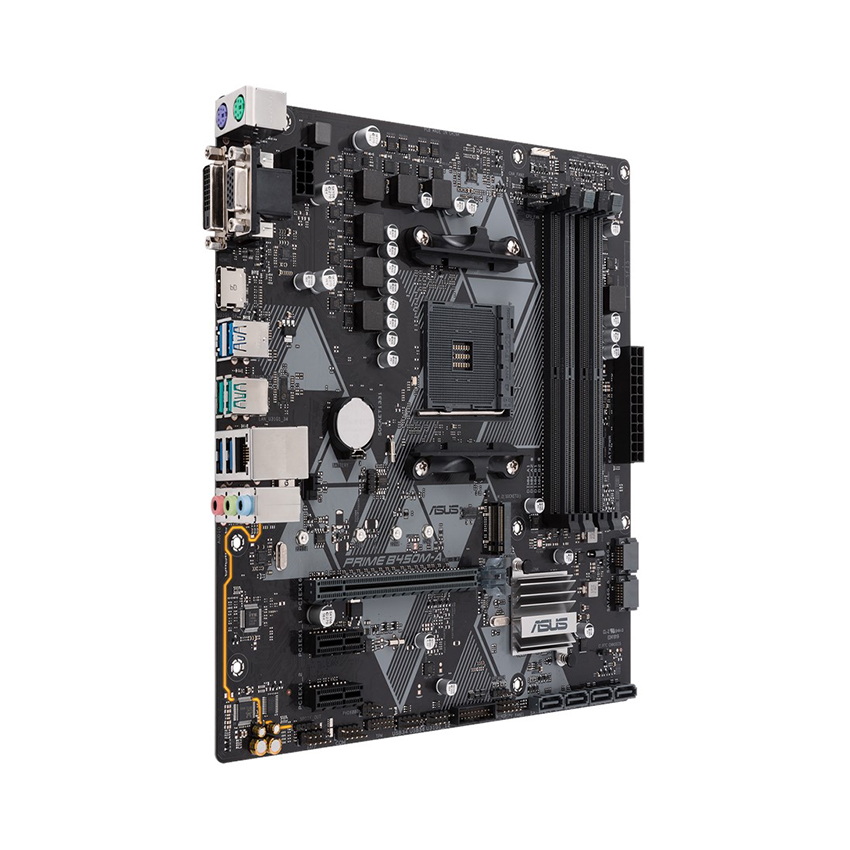

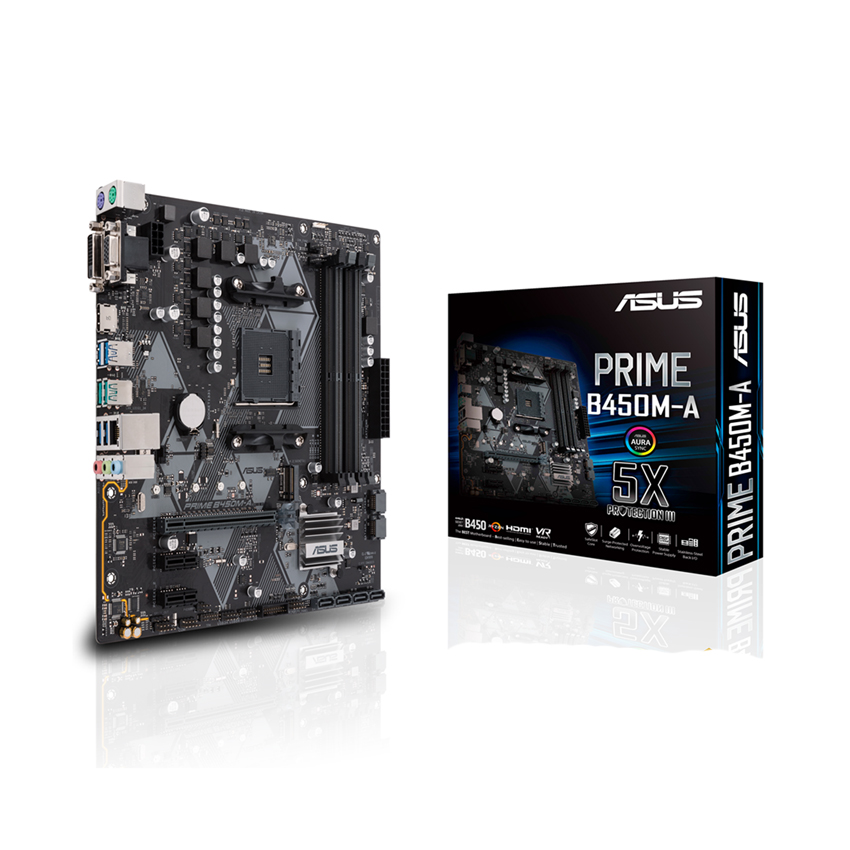

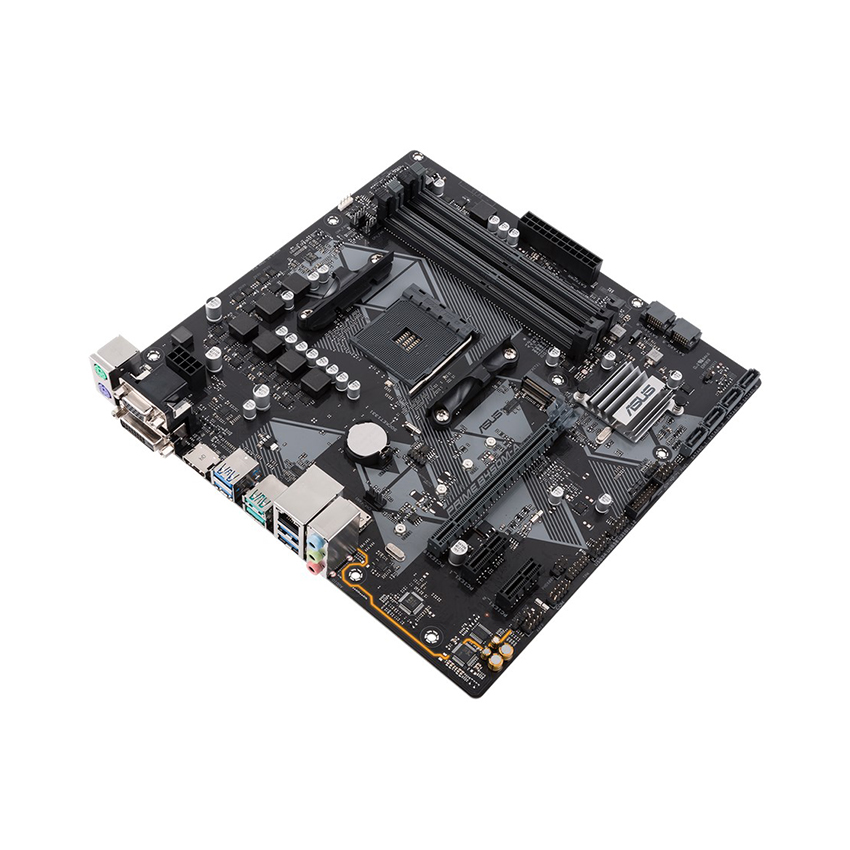

Mainboard ASUS PRIME B450M-A (AMD B450/Socket AM4/mATX/4 khe RAM DDR4)

Tên gọi

ASUS PRIME B450M-A

CPU hỗ trợ

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

Chipset / Socket

AMD B450

Bộ nhớ (RAM)

4 x DIMM, Max. 64GB, DDR4

Công nghệ đa GPU

AMD 2-Way CrossFireX Technology

Khe cắm mở rộng

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
AMD B450 chipset
2 x PCIe 2.0 x1

LAN / Wireless

Realtek® RTL8111H

Âm thanh

Realtek® ALC887 8-Channel High Definition Audio CODEC

Cổng kết nối (Internal)

1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

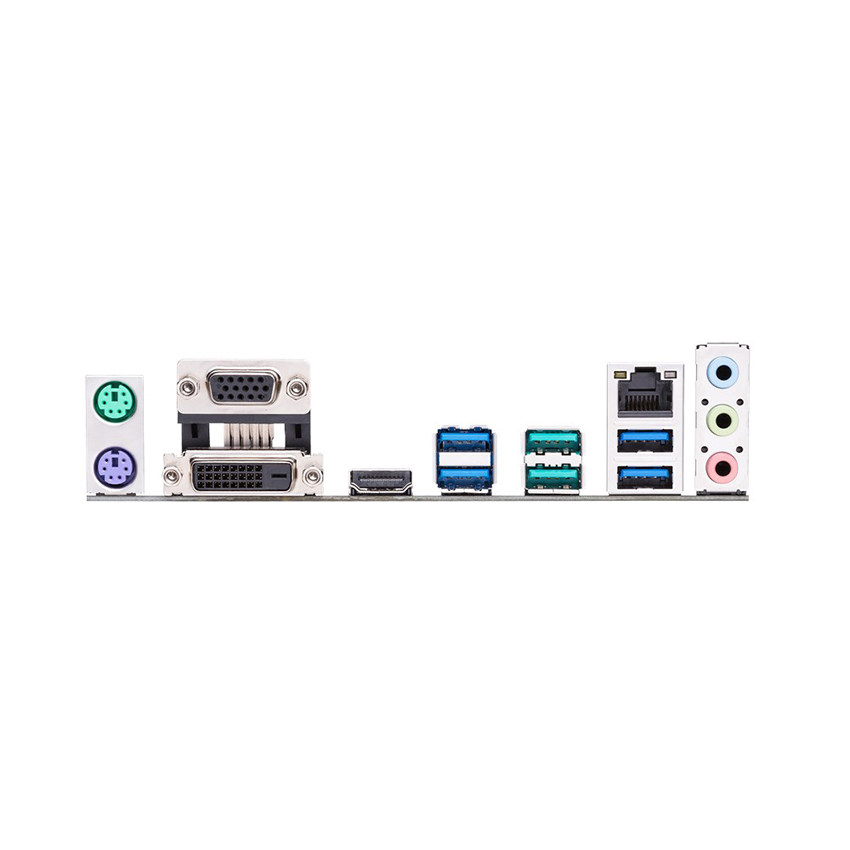

Cổng kết nối (Back Panel)

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1 ,
3 x Audio jack(s)

Công nghệ độc quyền

ASUS 5X Protection III
ASUS Exclusive Features
ASUS Quiet Thermal Solution
ASUS EZ DIY
ASUS Q-Design

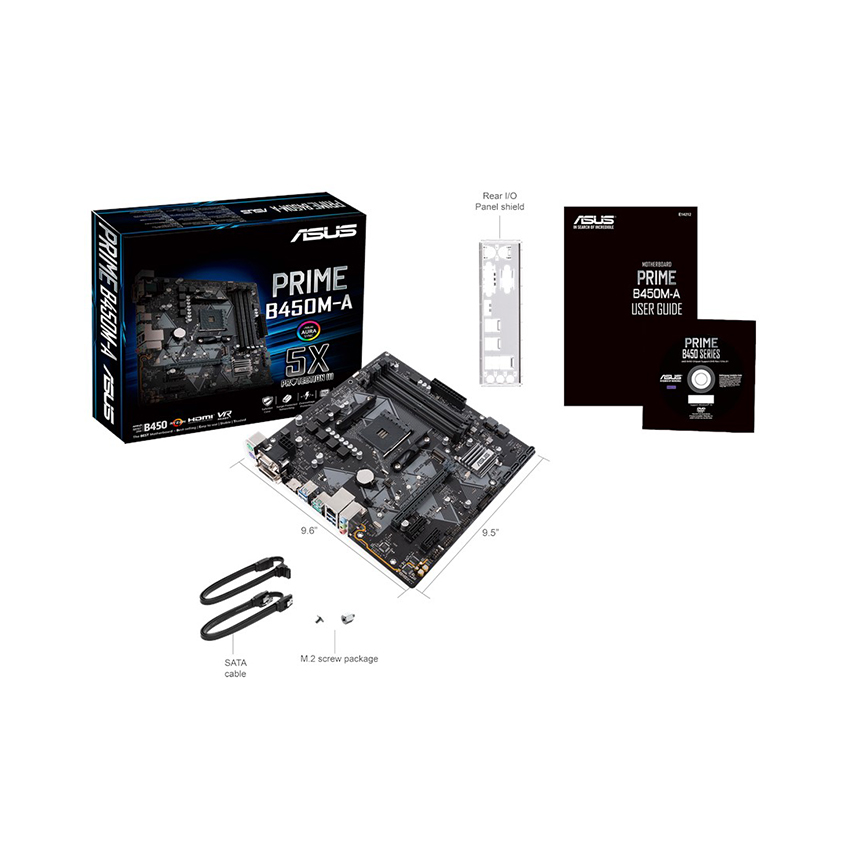

Phụ kiện đi kèm

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

Hệ điều hành khuyến nghị

Windows® 10 64-bit

Chuẩn kích cỡ

mATX Form Factor
