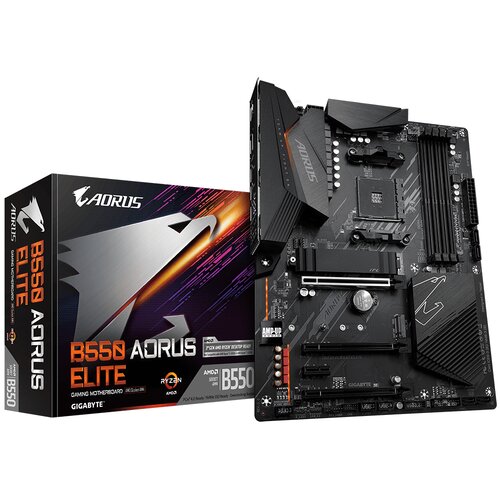

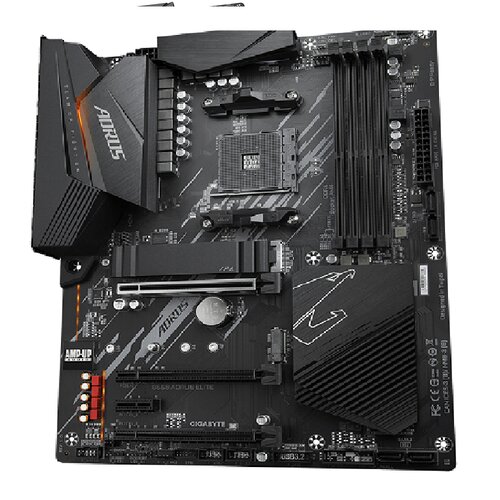

Mainboard Gigabyte B550 AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)
| Bảo hành: | 36 tháng |
| Giá niêm yết: | 5.200.000 đ |
| Liên hệ để có giá tốt hơn |
Trợ giúp
Customer Is Very Important Person - CIVIP
Phụ kiện đi kèm
Sản phẩm đang được cập nhật....
Sản phẩm đang được cập nhật....
Sản phẩm đang được cập nhật....
Bạn chưa xem sản phẩm nào
SO SÁNH SẢN PHẨM TƯƠNG TỰ
Đang cập nhật thông tin sản phẩm...
Video
Video đang cập nhật...
0 đánh giá Mainboard Gigabyte B550 AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)
|
|
|
Quang Đức
Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.
Hỏi đáp về Mainboard Gigabyte B550 AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)
Bình luận facebook
Tóm tắt thông số
| Hãng Sản Xuất | Gigabyte |
| Model | B550 AORUS ELITE |
| CPU hỗ trợ | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors |
| Socket | AM4 (Danh sách CPU hỗ trợ) |
| Chipset | AMD B550 |
| RAM hỗ trợ | 4 x DDR4 DIMM socket hỗ trợ lên đến 128 GB (32GB / DIMM ) |
| Kiến trúc bộ nhớ kênh đôi | |
| 3rd Gen AMD Ryzen™ Processors: | |
| Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
| New Generation AMD Ryzen™ with Radeon™ Graphics processors: | |
| Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Cổng xuất hình onboard | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: |
| 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz | |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Maximum shared memory of 16 GB | |
| Âm Thanh |
Realtek® ALC1200 codec
|
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
|
| Khe cắm mở rộng |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
|
| - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode | |
| - New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: | |
| - Supporting PCIe 3.0 x2 mode | |
| 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: | |
| - Supporting PCIe 3.0 x1 mode | |
| 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: | |
| - Supporting PCIe 3.0 x1 mode | |
| Ổ cứng hỗ trợ |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
|
| - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs | |
| - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: | |
| - Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: | |
| - Support for RAID 0, RAID 1, and RAID 10 | |
| USB |
CPU:
|
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| 2 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 2 x USB 3.2 Gen 1 ports on the back panel | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Cổng kết nối ( I/O bên trong) |
1 x 24-pin ATX main power connector
|
| 1 x 8-pin ATX 12V power connector | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1 x Clear CMOS jumper | |

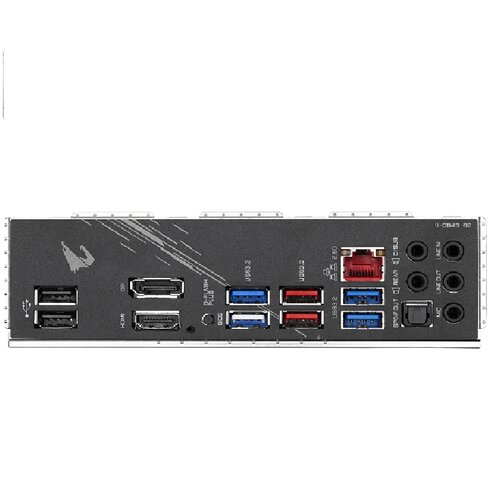

| Cổng kết nối ( I/O Phía sau) |
1 x DisplayPort
|
| 1 x HDMI port | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 5 x audio jacks | |
|
H/W Monitoring
|
Voltage detection
|
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS |
1 x 256 Mbit flash
|
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Các tính năng độc đáo |
Support for APP Center
|
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash Plus | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Kích cỡ |
ATX Form Factor; 30.5cm x 24.4cm
|
