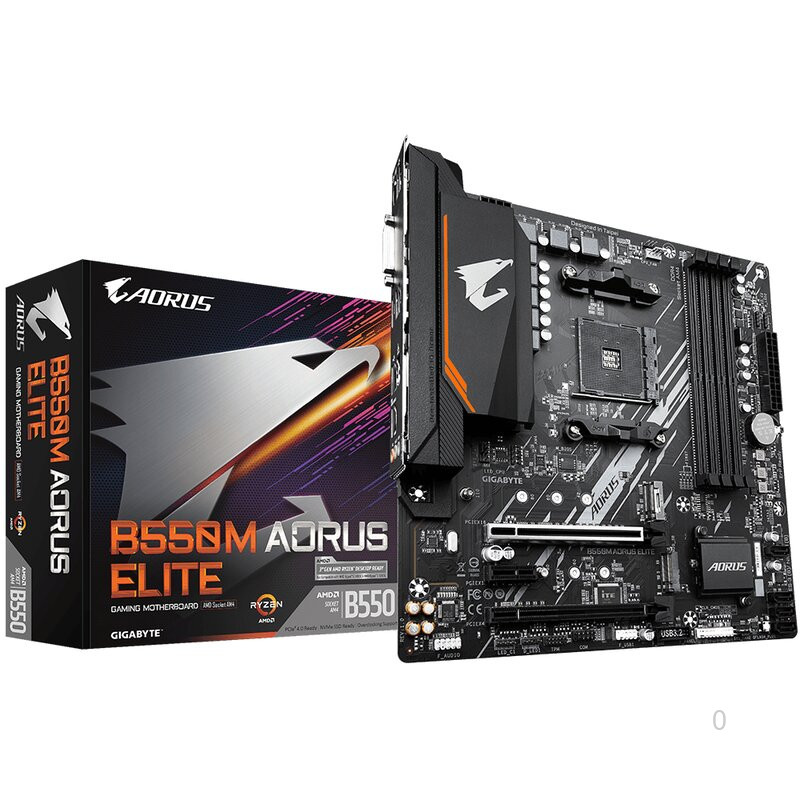

Mainboard Gigabyte B550M AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)

Mã SP: MBGI088 ( 0 )
Còn hàng

SO SÁNH SẢN PHẨM TƯƠNG TỰ

Mainboard Gigabyte B550M AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)

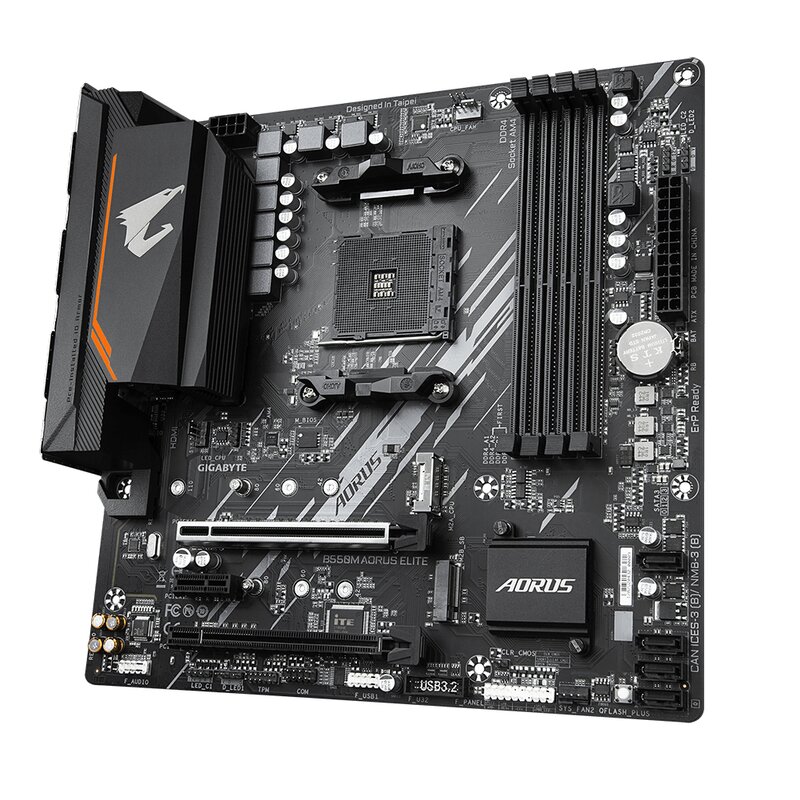

Mainboard Gigabyte B550M AORUS ELITE

Mainboard Gigabyte B550M AORUS ELITE siêu bền với giải pháp VRM kỹ thuật số thuần túy 5 + 3, Khe cắm PCIe 4.0 x16, Bộ kết nối PCIe 4.0 / 3.0 M.2 kép, LAN chơi game GIGABYTE 8118, Quạt thông minh 5 với FAN STOP, RGB FUSION 2.0, Q-Flash Plus.

  • Hỗ trợ Bộ xử lý AMD Ryzen™ thế hệ thứ 3
  • Kênh đôi ECC / Non-ECC không có bộ đệm DDR4, 4 DIMM Max 128GB
  • Giải pháp VRM kỹ thuật số thuần túy 5 + 3 pha với Low RDS(on) MOSFETs
  • Khe cắm siêu bền PCIe 4.0 Ready x16
  • Bộ kết nối NVMe PCIe 4.0 / 3.0 M.2 cực nhanh
  • Tụ âm thanh chất lượng cao và bảo vệ chống ồn âm thanh cho chất lượng âm thanh tuyệt đỉnh
  • GIGABYTE 8118 chơi game GbE LAN
  • Hỗ trợ HDMI & DVI phía sau
  • RGB FUSION 2.0 hỗ trợ dải LED & RGB có thể định địa chỉ
  • Quạt thông minh 5 có nhiều cảm biến nhiệt độ, tiêu đề quạt lai với FAN STOP
  • Q-Flash Plus Cập nhật BIOS mà không cần cài đặt CPU, Bộ nhớ và Card đồ họa
  • Thiết kế điện trở chống lưu huỳnh

Bo mạch chủ B550M AORUS ELITE sử dụng thiết kế kỹ thuật số thuần túy 5 + 3 pha

Bo mạch chủ B550M AORUS ELITE sử dụng thiết kế kỹ thuật số thuần túy 5 + 3 pha + Low RDS(on) MOSFETs để hỗ trợ CPU AMD Ryzen™ thế hệ thứ 3 bằng cách cung cấp độ chính xác đáng kinh ngạc trong việc cung cấp năng lượng cho các thành phần nhạy cảm với năng lượng nhất của bo mạch chủ như cũng như cung cấp hiệu suất hệ thống nâng cao và khả năng mở rộng phần cứng cuối cùng.

Thiết kế phần cứng PCIe 4.0 sẵn sàng

Thiết kế phần cứng PCIe 4.0 sẵn sàng

Đầu nối kép M.2 NVMe PCIe 4.0 * / 3.0

Đầu nối kép M.2 NVMe PCIe 4.0 * / 3.0

Với các đầu nối NVMe PCIe 4.0 * / 3.0 x4 và PCIe 3.0 x2 M.2 trên bo mạch chủ, Main B550M AORUS ELITE mang đến cho người dùng trải nghiệm chế độ NVMe hoặc kết nối chế độ SATA cho các thiết bị SSD M.2. Cung cấp tốc độ truyền dữ liệu lên đến 64 Gb/s, thiết kế đầu nối M.2 kép cung cấp một giải pháp lưu trữ lý tưởng đồng thời hỗ trợ trong các chế độ RAID.

Mạng LAN chơi game Realtek 8118 độc quyềnMạng LAN chơi game Realtek 8118 độc quyền

LAN Gigabit tốc độ cao với phân bổ băng thông tự động Realtek 8118 LAN là chip mạng thân thiện và hiệu suất cao dành cho game thủ, với khả năng phân bổ băng thông tự động để đảm bảo mức ưu tiên mạng cao nhất của trò chơi hoặc ứng dụng. Nó có thể cung cấp cho người dùng các tính năng toàn diện nhất và trải nghiệm Internet nhanh nhất và mượt mà nhất.

Hỗ trợ HDMI 2.1 cho 4K / 60P / 21:9 / HDCP 2.3Hỗ trợ HDMI 2.1 cho 4K / 60P / 21:9 / HDCP 2.3

HDMI 2.1, tương thích ngược với HDMI 2.0/1.4 và cung cấp băng thông 48Gb/giây - gấp hai lần so với thế hệ trước. Điều này mở ra tiềm năng cho người dùng chuyển nhiều luồng video, cũng như tỷ lệ 21:9 điện ảnh gốc (mà hầu hết các phim được quay), hỗ trợ Full HDR và HDCP 2.3, để mang lại trải nghiệm hình ảnh tốt nhất cho người xem.

LAN bảo vệ tĩnh điện & chống sét hàng đầu trong ngànhLAN bảo vệ tĩnh điện & chống sét hàng đầu trong ngành

Các bo mạch chủ B550M AORUS ELITE sử dụng các IC có mức kháng kháng lên tới 3 lần so với các IC truyền thống. Điều này giúp bảo vệ tốt hơn bo mạch chủ và các thành phần của nó chống lại thiệt hại tiềm ẩn do tĩnh điện gây ra. Các bo mạch chủ của GIGABYTE cũng có các IC chống đột biến đặc biệt bảo vệ bo mạch chủ của bạn và PC của bạn khỏi mọi sự tăng vọt trong việc cung cấp năng lượng có thể xảy ra, giúp đảm bảo rằng PC của bạn được trang bị để đối phó với mọi khả năng cung cấp năng lượng không thường xuyên và không nhất quán.

Tản nhiệt MOSFETs mở rộng

Tản nhiệt MOSFETs mở rộng đảm bảo nhiệt độ thấp hơn. IO Shield được cài đặt sẵn để lắp ráp dễ dàng hơn.

Smart Fan 5

Với Smart Fan 5, người dùng có thể đảm bảo rằng PC chơi game của họ có thể duy trì hiệu suất của nó trong khi vẫn mát. Quạt thông minh 5 cho phép người dùng trao đổi các tiêu đề quạt của họ để phản ánh các cảm biến nhiệt khác nhau tại các vị trí khác nhau trên bo mạch chủ. Không chỉ vậy, với Smart Fan 5, nhiều đầu quạt lai hỗ trợ cả quạt chế độ PWM và Voltage để làm cho bo mạch chủ trở nên thân thiện với tản nhiệt nước.

Khung khóa đôi siêu chắc chắn được cấp bằng sáng chế của GIGABYTE

Khung khóa đôi siêu chắc chắn được cấp bằng sáng chế của GIGABYTE

Solid Pin Power Connectors - Kết nối nguồn pin rắn

Solid Pin Power Connectors - Kết nối nguồn pin rắn

Ưu điểm của đầu nối Solid Pin Power: Diện tích tiếp xúc lớn hơn, Lượng kim loại nhiều hơn để duy trì công suất cao hơn, Siêu bền và tuổi thọ cao hơn.

BẢO VỆ KHỎI LƯU HUỲNH - SULFURIZATION PROTECTIONBẢO VỆ KHỎI LƯU HUỲNH - SULFURIZATION PROTECTION

Các hợp chất lưu huỳnh trong không khí có thể xuyên qua các điện trở nhỏ trên bo mạch tạo ra sự thay đổi hóa học và làm cho các điện trở này hở hoặc ngắt quãng. Nếu một trong hai điều này xảy ra, bo mạch chủ sẽ không hoạt động. Bằng cách trang bị các điện trở với thiết kế chống lưu huỳnh, Giga B550M ELITE mang đến một định nghĩa hoàn toàn mới về bo mạch chủ siêu bền.

Xem thêm

Video

Video đang cập nhật...

0 đánh giá Mainboard Gigabyte B550M AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)

Quang Đức

Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Xem thêm các đánh giá khác



Hỏi đáp về Mainboard Gigabyte B550M AORUS ELITE (Chipset AMD B550/ Socket AM4/ Ram DDR4)

avatar
x
Đánh giá:

Bình luận facebook

Tóm tắt thông số
Tên Hãng Gigabyte
Model B550M AORUS ELITE
CPU hỗ trợ AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Socket AM4 (Danh sách CPU hỗ trợ)
Chipset AMD B550
RAM hỗ trợ 4 x DDR4 DIMM socket hỗ trợ lên đến 128 GB (32GB / DIMM ) Kiến trúc bộ nhớ kênh đôi
  • 3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
Cổng xuất hình onboard

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Âm Thanh

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Khe cắm mở rộng

1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:

3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

Ổ cứng hỗ trợ

1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Cổng kết nối ( I/O bên trong)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

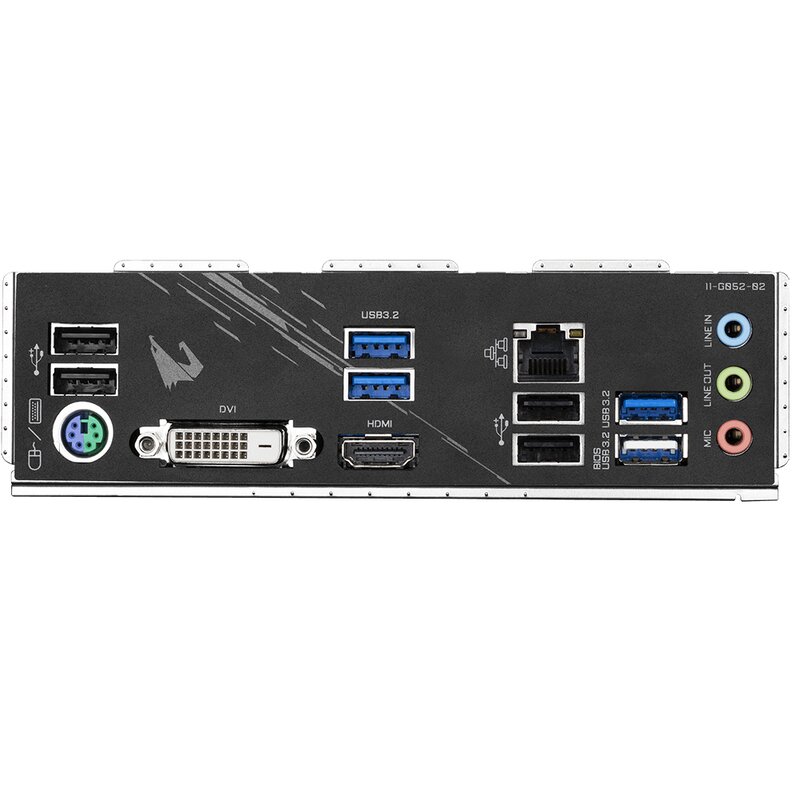

Cổng kết nối ( I/O Phía sau)

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller
iTE® I/O Controller Chip
Theo dõi phần cứng

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Các tính năng độc đáo

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Phần mềm đi kèm

Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Hệ điều hành Support for Windows 10 64-bit
Kích cỡ Micro ATX Form Factor; 24.4cm x 24.4cm
