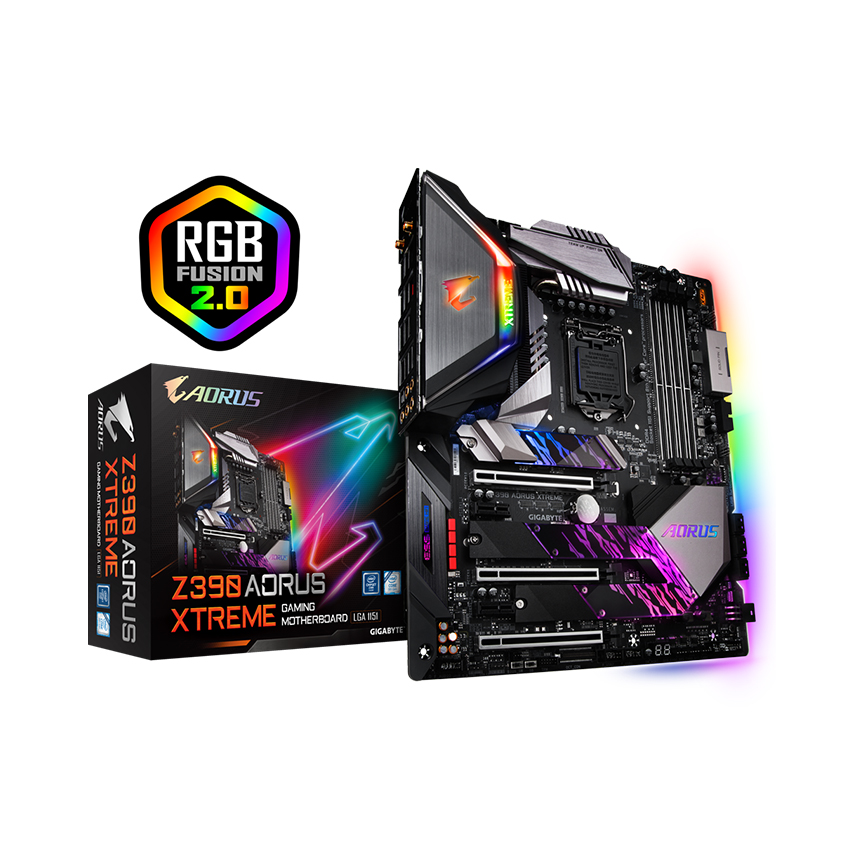

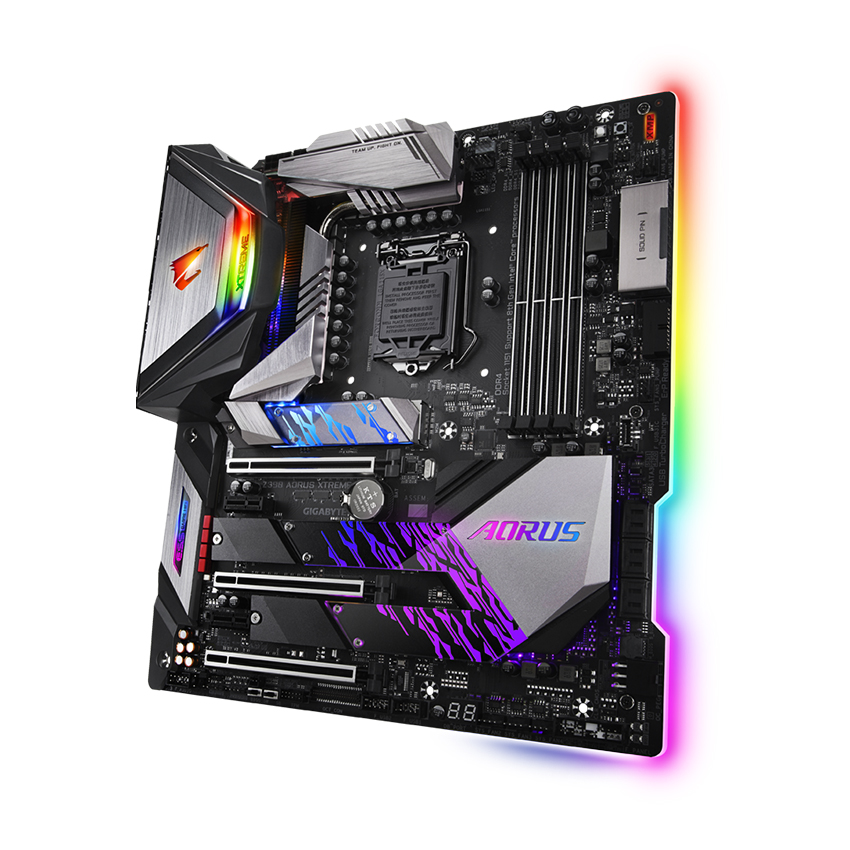

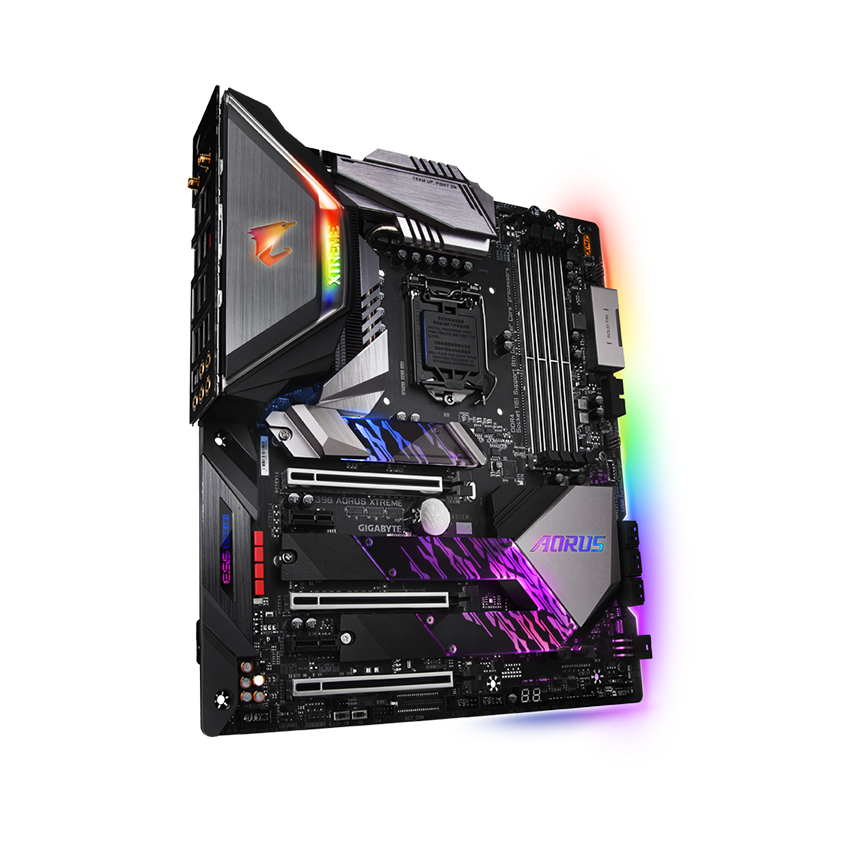

Mainboard GIGABYTE Z390 Aorus Xtreme 9 (Intel Z390/Socket 1151/ATX/4 khe RAM DDR4)

Supports 9th and 8th Gen Intel® Core™ Processors

Intel® Optane™ Memory Ready

Khe cắm mở rộng: 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots, 1 x M.2 Socket

Khe cắm ổ cứng: 3 x M.2 connector, 6 x SATA

Xem thêm > Thu gọn

Bảo hành:

36 tháng

Giá:

Liên hệ

Đặt mua ngay Miễn phí giao hàng, thanh toán linh hoạt

Trợ giúp

Hướng dẫn mua hàng
Hướng dẫn thanh toán
Chính sách đổi trả hàng
Chính sách mua trả góp
Chính sách bảo hành
Chính sách giao hàng

Customer Is Very Important Person - CIVIP

Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	Z390 AORUS XTREME
CPU hỗ trợ	Intel
Chipset	Z390
RAM hỗ trợ	4 x DDR4 DIMM sockets supporting up to 64 G DDR4 2666 / 2400 / 2133 MHz
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Ổ cứng hỗ trợ	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x GC-OC Touch add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x BIOS switches

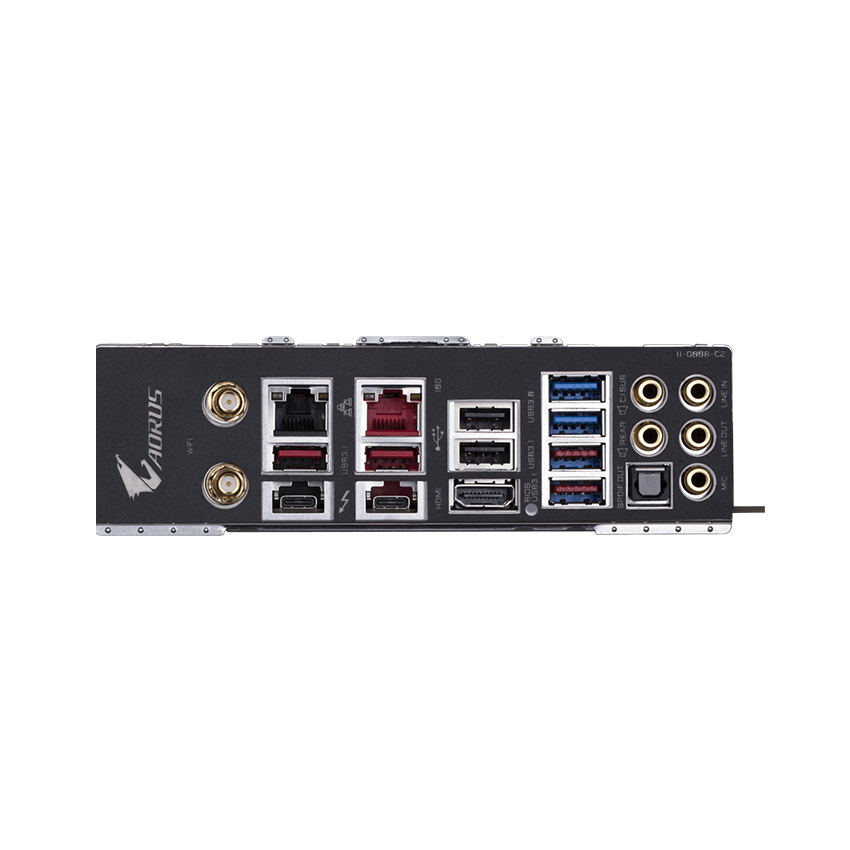

Cổng kết nối (Back Panel)	2 x SMA antenna connectors (2T2R) 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support) 4 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
LAN / Wireless	1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
Kích cỡ	E-ATX Form Factor; 30.5cm x 27.1cm

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	Z390 AORUS XTREME
CPU hỗ trợ	Intel
Chipset	Z390
RAM hỗ trợ	4 x DDR4 DIMM sockets supporting up to 64 G DDR4 2666 / 2400 / 2133 MHz
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Ổ cứng hỗ trợ	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x GC-OC Touch add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x BIOS switches
Cổng kết nối (Back Panel)	2 x SMA antenna connectors (2T2R) 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support) 4 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
LAN / Wireless	1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
Kích cỡ	E-ATX Form Factor; 30.5cm x 27.1cm

Mainboard GIGABYTE Z390 Aorus Xtreme 9 (Intel Z390/Socket 1151/ATX/4 khe RAM DDR4)
