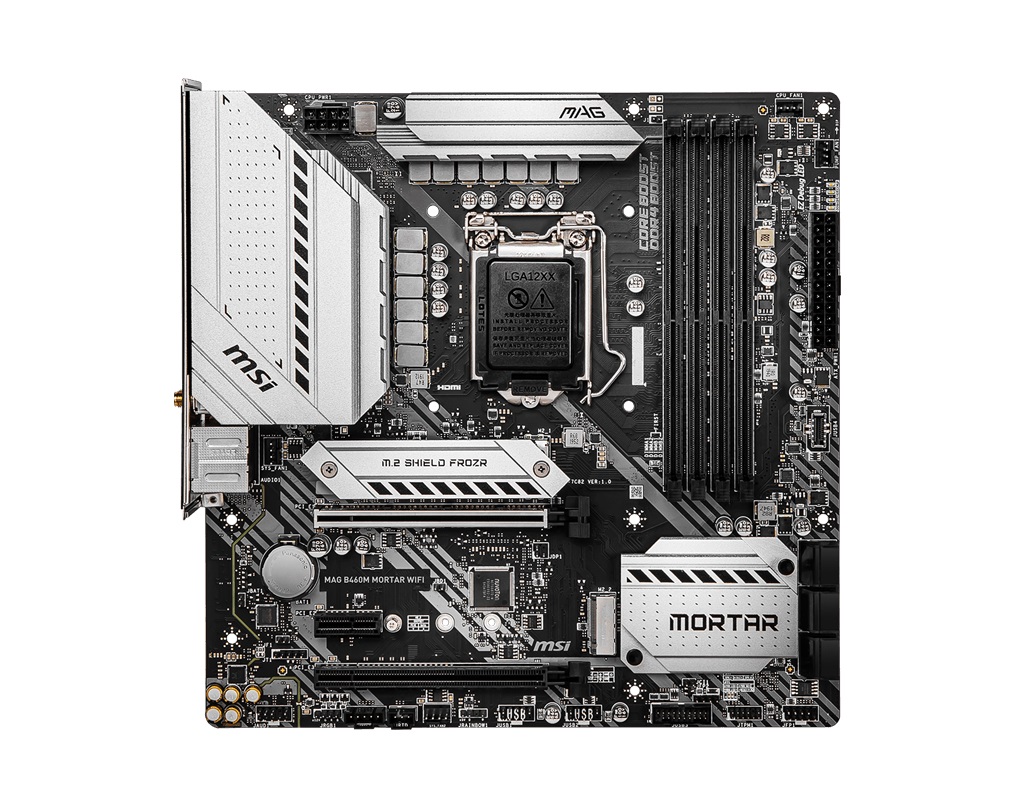

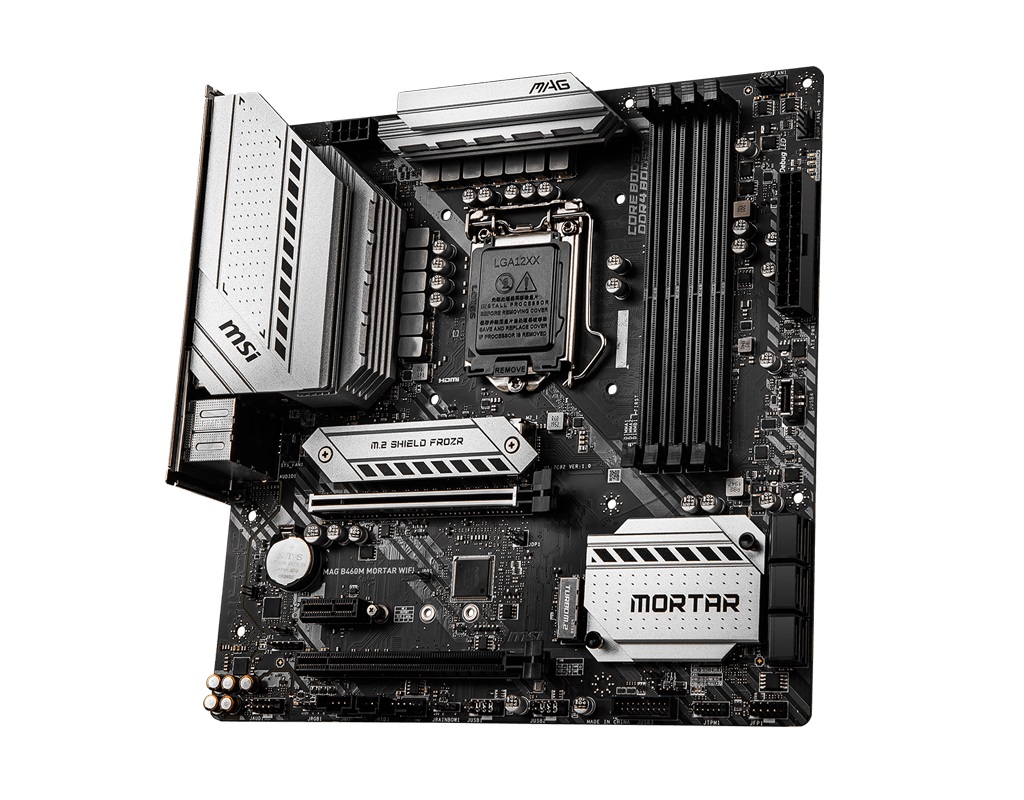

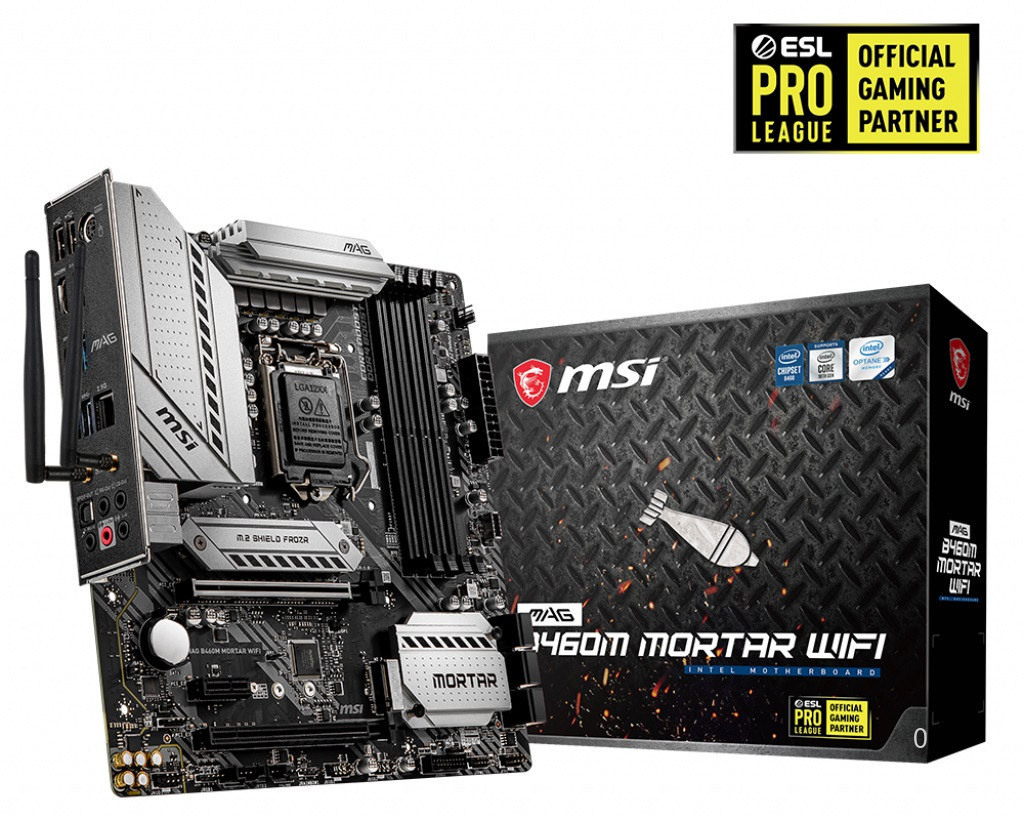

Name: Mainboard MSI MAG B460M MORTAR WIFI (Intel B460/Socket 1200/m-ATX/4 khe RAM DDR4)
Brand: MSI
SKU: MBMS075

Socket: LGA1200 hỗ trợ CPU intel thế hệ 10
Kích thước: m-ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1x PCIe 3.0 x16 slots, 2x PCIe x1 slots

Xem thêm > Thu gọn

Bảo hành:

36 tháng

Giá niêm yết:	3.199.000 đ
Giá:	3.100.000 đ

Đặt mua ngay Miễn phí giao hàng, thanh toán linh hoạt

Trợ giúp

Hướng dẫn mua hàng
Hướng dẫn thanh toán
Chính sách đổi trả hàng
Chính sách mua trả góp
Chính sách bảo hành
Chính sách giao hàng

Customer Is Very Important Person - CIVIP

Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Model	MAG B460M MORTAR WIFI
CPU hỗ trợ	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset	Intel® B460 Chipset
RAM hỗ trợ	4x DDR4 memory slots, support up to 128GB Intel^® Core^™ i7/i9 Supports up to DDR4 2933 MHz Intel^® Core^™ i5 (Below) Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe cắm mở rộng	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH)
Hỗ trợ đa card màn hình	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Lưu trữ	6x SATA 6Gb/s ports ¹ 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices¹ M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready² Supports Intel^® Smart Response Technology for Intel Core™ processors
USB	2x USB 3.2 Gen 1 5Gbps Type-C ports 5x USB 3.2 Gen 1 5Gbps Type-A ports 6x USB 2.0 ports
Âm Thanh	7.1-Channel High Definition Audio Supports S/PDIF output
WiFi & Bluetooth	Intel^® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot Only support windows 10 64-bit
LAN	1x Realtek^® RTL8125B 2.5G LAN Controller
Cổng kết nối ( I/O bên trong)	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector ¹ 1x RTD3 connector¹

Model	MAG B460M MORTAR WIFI
CPU hỗ trợ	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset	Intel® B460 Chipset
RAM hỗ trợ	4x DDR4 memory slots, support up to 128GB Intel^® Core^™ i7/i9 Supports up to DDR4 2933 MHz Intel^® Core^™ i5 (Below) Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe cắm mở rộng	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH)
Hỗ trợ đa card màn hình	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Lưu trữ	6x SATA 6Gb/s ports ¹ 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices¹ M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready² Supports Intel^® Smart Response Technology for Intel Core™ processors
USB	2x USB 3.2 Gen 1 5Gbps Type-C ports 5x USB 3.2 Gen 1 5Gbps Type-A ports 6x USB 2.0 ports
Âm Thanh	7.1-Channel High Definition Audio Supports S/PDIF output
WiFi & Bluetooth	Intel^® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot Only support windows 10 64-bit
LAN	1x Realtek^® RTL8125B 2.5G LAN Controller
Cổng kết nối ( I/O bên trong)	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector ¹ 1x RTD3 connector¹
