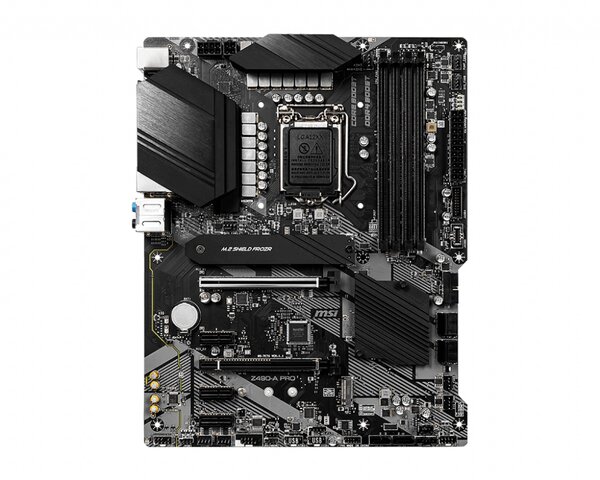

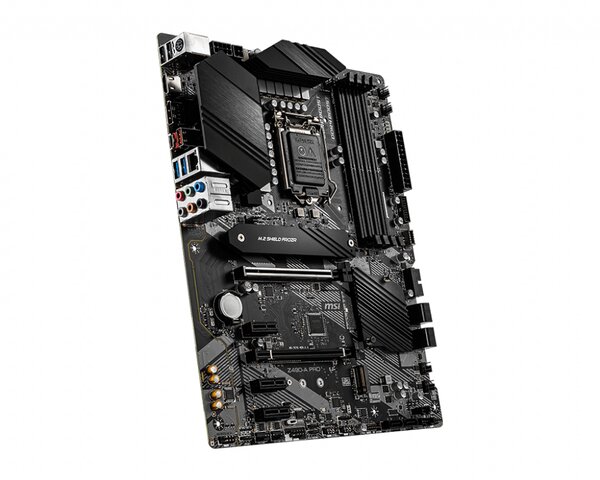

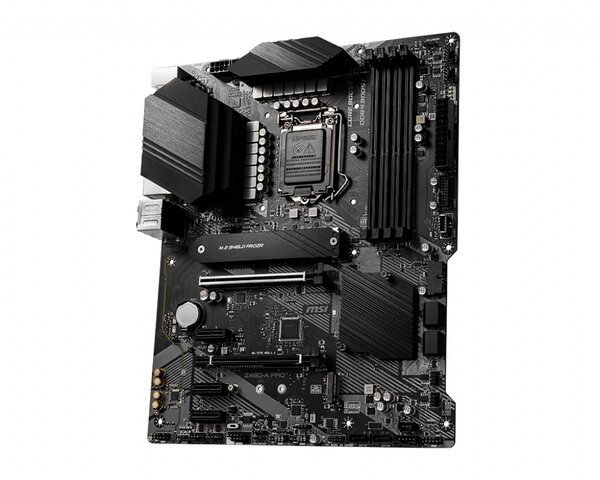

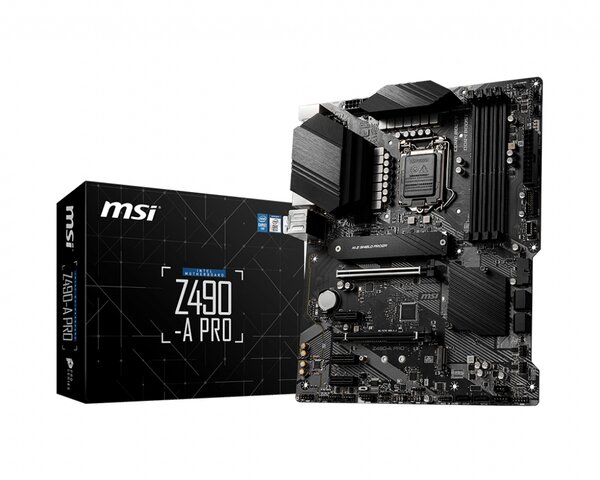

Model |
Z490-A PRO |
|
|
CPU hỗ trợ |
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket |
|
|
Chipset |
Intel® Z490 Chipset |
|
|
RAM hỗ trợ |
4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
|
Khe cắm mở rộng |
1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH) |
|
|
Cổng xuất hình ( ONBOARD GRAPHICS ) |
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
|
|
Hỗ trợ đa card màn hình |
Supports 2-Way AMD®CrossFire™ Technology |
|
|
Lưu trữ |
6x SATA 6Gb/s ports M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
|
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
|
|
USB |
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
|
|
Âm Thanh |
Realtek® ALC892 Codec |
|
|
LAN / Wireless / Bluetooth |
1x Realtek® RTL8125B-CG 2.5G LAN Controller |
|
|
Cổng kết nối ( I/O bên trong) |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector 1 Thunderbolt card need support RTD3 |
|
|

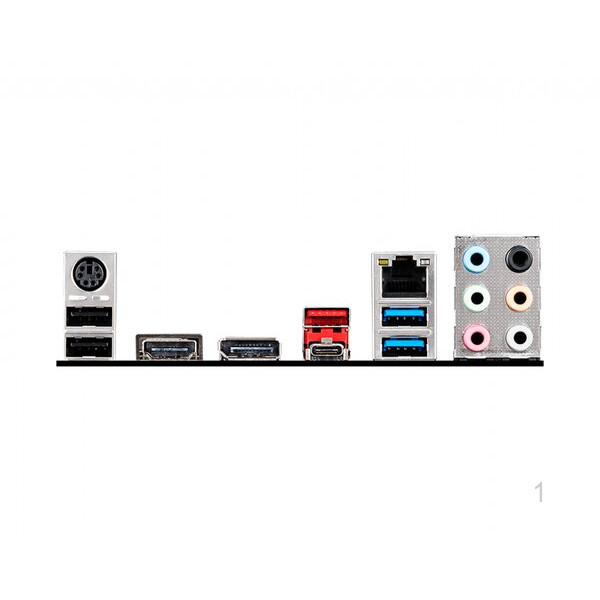

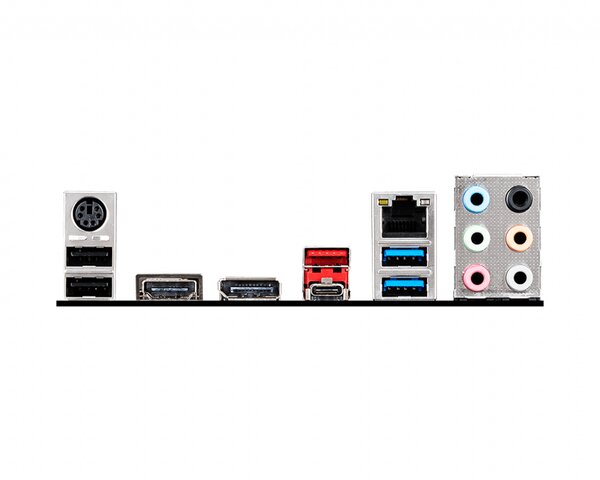

Cổng kết nối ( I/O Phía sau) |
Keyboard / Mouse 5G LAN Audio Connectors USB 2.0 HDMI DisplayPort USB 3.2 Gen 2 10Gbps Type-A + Type-C USB 3.2 Gen 1 5Gbps Type-A |
|
|
Kích cỡ |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
|
Model |
Z490-A PRO |
|
|
CPU hỗ trợ |
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket |
|
|
Chipset |
Intel® Z490 Chipset |
|
|
RAM hỗ trợ |
4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
|
Khe cắm mở rộng |
1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH) |
|
|
Cổng xuất hình ( ONBOARD GRAPHICS ) |
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
|
|
Hỗ trợ đa card màn hình |
Supports 2-Way AMD®CrossFire™ Technology |
|
|
Lưu trữ |
6x SATA 6Gb/s ports M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
|
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
|
|
USB |
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
|
|
Âm Thanh |
Realtek® ALC892 Codec |
|
|
LAN / Wireless / Bluetooth |
1x Realtek® RTL8125B-CG 2.5G LAN Controller |
|
|
Cổng kết nối ( I/O bên trong) |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector 1 Thunderbolt card need support RTD3 |
|
|
Cổng kết nối ( I/O Phía sau) |
Keyboard / Mouse 5G LAN Audio Connectors USB 2.0 HDMI DisplayPort USB 3.2 Gen 2 10Gbps Type-A + Type-C USB 3.2 Gen 1 5Gbps Type-A |
|
|
Kích cỡ |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
